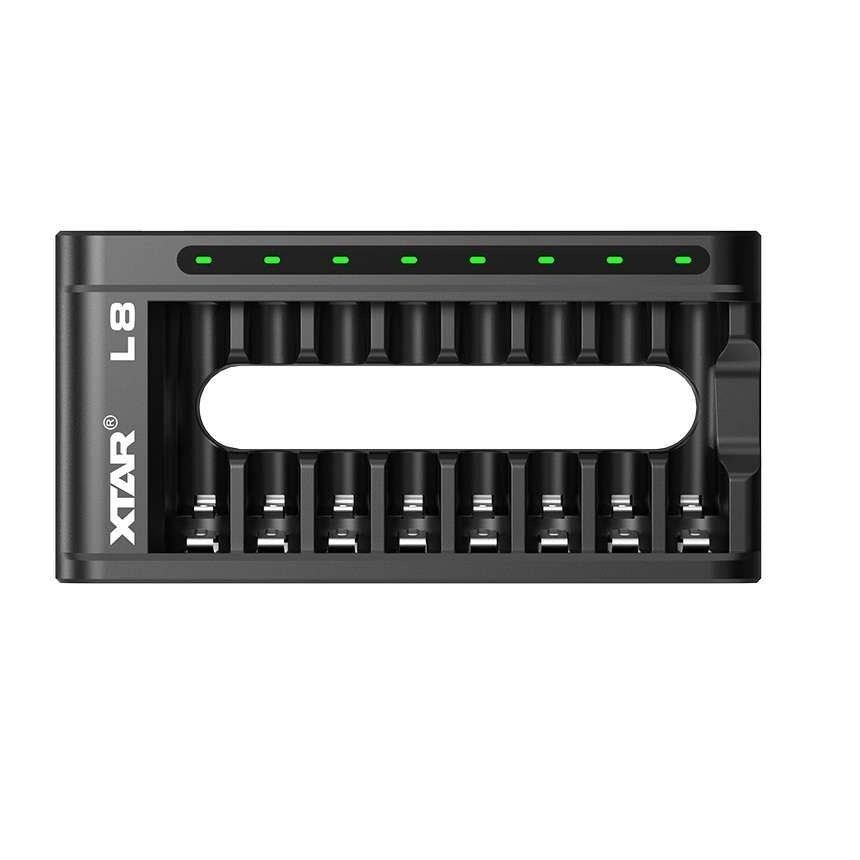

XTAR L8

XTAR L8: The High-Capacity 8-Slot Smart Charger

The XTAR L8 is the ultimate high-capacity solution for households and professionals who burn through AA and AAA batteries. While the VC series focuses on diagnostics, the L8 is built for volume, speed, and simplicity, specifically optimized for the new generation of 1.5V Li-ion rechargeable cells.

Mass Charging Made Simple.

Stop waiting for batteries to finish two by two. The XTAR L8 is a dedicated 8-bay powerhouse designed to manage large sets of AA and AAA batteries simultaneously. Whether you’re powering gaming controllers, high-end photography gear, or a fleet of household remotes, the L8 ensures you always have a full set of cells ready to go.

Key Features

• 8 Independent Slots: Mix and match your batteries. Every slot operates independently, allowing you to charge 1.5V Li-ion and 1.2V Ni-MH batteries in any combination at the same time.
• 1.5V Li-ion Optimization: The L8 is purpose-built to handle the unique voltage requirements of 1.5V Li-ion AA/AAA cells, ensuring they reach a true 100% charge without overheating.
• Hollow-Out Heat Dissipation: The unique "open-frame" design isn't just for looks—it allows for maximum airflow to keep batteries cool and makes it incredibly easy to pop batteries out with one finger.
• Intelligent LED Indicators: Simple, color-coded LEDs keep you informed. Green means ready or full; Red means charging. No complex menus, just clear status updates.
• USB-C Powered: Equipped with a modern USB-C input, the L8 can be powered by any 5V/2A wall adapter, power bank, or solar panel, making it a perfect travel companion for photographers and vloggers.
• 0V Activation: Like its bigger brothers, the L8 can revive over-discharged Ni-MH batteries, saving you from prematurely recycling "dead" cells.

Universal AA/AAA Compatibility

The L8 is designed specifically for the two most common battery sizes in the world. It intelligently detects chemistry and applies the correct charging profile automatically.

Safety & Precision

XTAR’s multi-protection suite is built directly into the L8’s hardware:

• Over-Charge Protection: Automatically stops current when the battery reaches capacity.
• Short Circuit & Reverse Polarity Protection: Protects the charger and your home if a battery is inserted incorrectly.
• Soft-Start Charging: Gradually increases current to protect the internal structure of the battery.

Technical Specifications

• Input: USB-C 5V / 2A
• Constant Current: 0.5A x 8 (Independent slots)
• Cut-off Voltage: 1.5V \pm 0.1v (Li-ion) / 1.45V \pm 0.1V (Ni-MH)
• Operating Temperature: 0–40°C
• Dimensions: 153mm x 76.5mm x 27.6mm
• Net Weight: 118g

What’s in the Box?

1. XTAR L8 8-Slot Charger
2. USB-C Cable
3. User Manual
