5 Year Warranty*

All Leopard Thermal Handheld Monoculars come with a 5-year warranty, ensuring long-term reliability and peace of mind with every purchase.

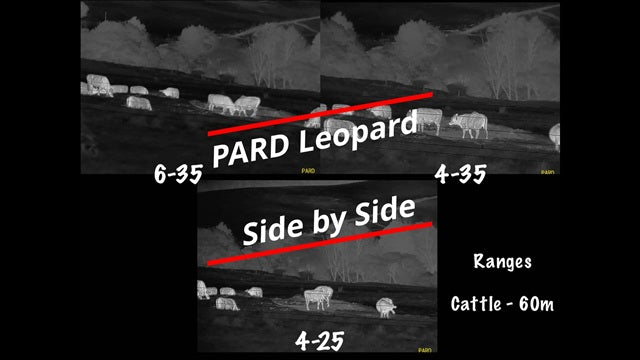

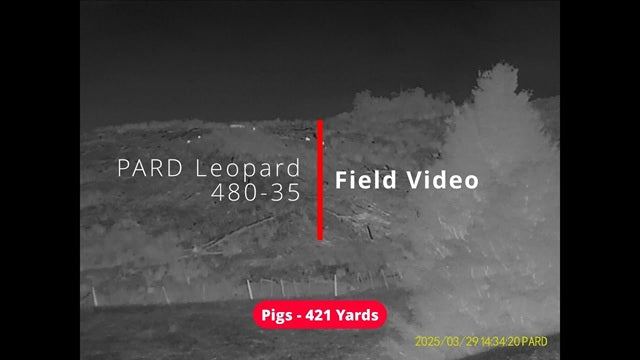

Videos

Made by us in Whangarei :)

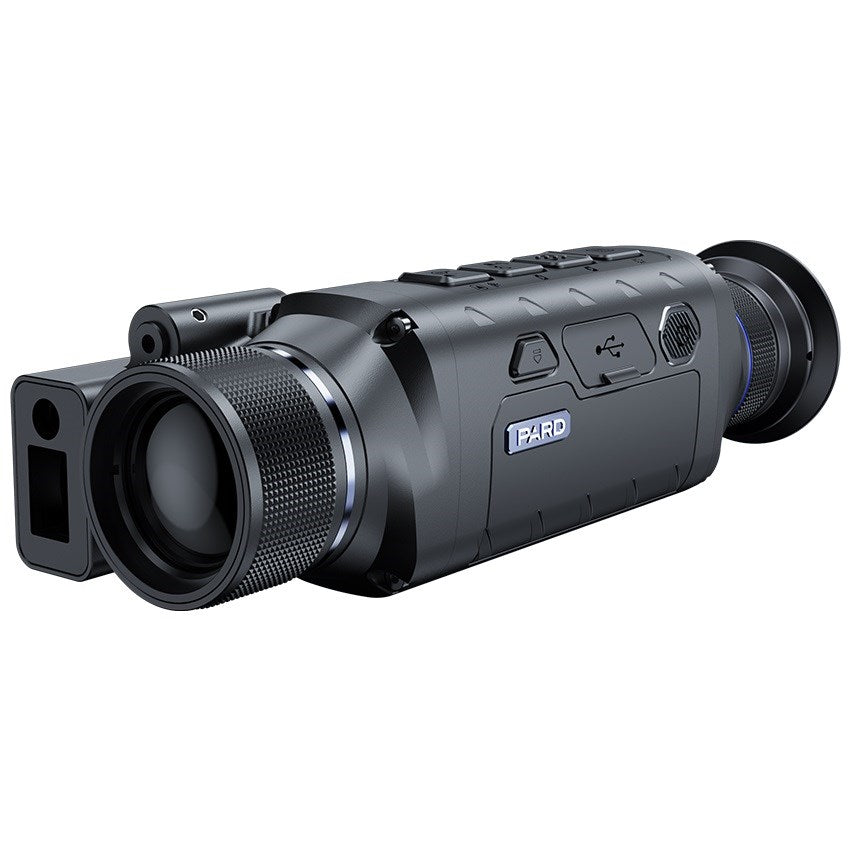

Product details

Sensor

480 Models

Type Uncooled VOx(vanadium oxide)

Resolution(pixel) 480*360

Pixel Size(µm) 12*12

NETD ≤20mK(0.02℃)

Frame Rate(Hz) 50

Detection Distance(m) 1200/1800

640 Models

Type Uncooled VOx(vanadium oxide)

Resolution(pixel) 640*512

Pixel Size(µm) 12*12

NETD ≤20mK(0.02℃)

Frame Rate(Hz) 50

Detection Distance(m) 1800

Optics

480 - 25/35

Optical Magnification(x) 2/2.8

Digital Zoom(x) 2/4/6/8

Field of View (Horizontal) 13.1°/9.4°

Field of View (Vertical) 9.9°/7.1°

Field of View (Diagonal) 16.4°/11.7°

Eye Relief(mm) 20

640 - 35

Optical Magnification(x) 2.2

Digital Zoom(x) 2/4/6/8

Field of View (Horizontal) 12.5°

Field of View (Vertical) 10.0°

Field of View (Diagonal) 16.0°

Eye Relief(mm) 20

Other Specs

Screen Type AMOLED

Resolution(pixel) 1920*1080

LRF Detection Range(m/yd) 1000/1200

Battery Type Lithium Ion 18650 x 1

Operating Time(h) (Read Above Battery's) ≤6

Product Dimension (L x W x H, mm) 169*58*48 Approx

N.W/pcs(with LRF battery, g) 360g Approx
